3" MCI DBI Cell

Used in all of our MCI™ air purification units including but not limited to:

• KHAOS, MCI BREEZE, ProtectAIR
• MCI SynAIRgPure™ 1.0 & 2.0 HVAC Probes
• MINI-4 HVAC, MAK Inline™ + MCI™ HVAC probes
• MCI PRV24K,  MCI PRV40K,  MCI™ PTAC

---

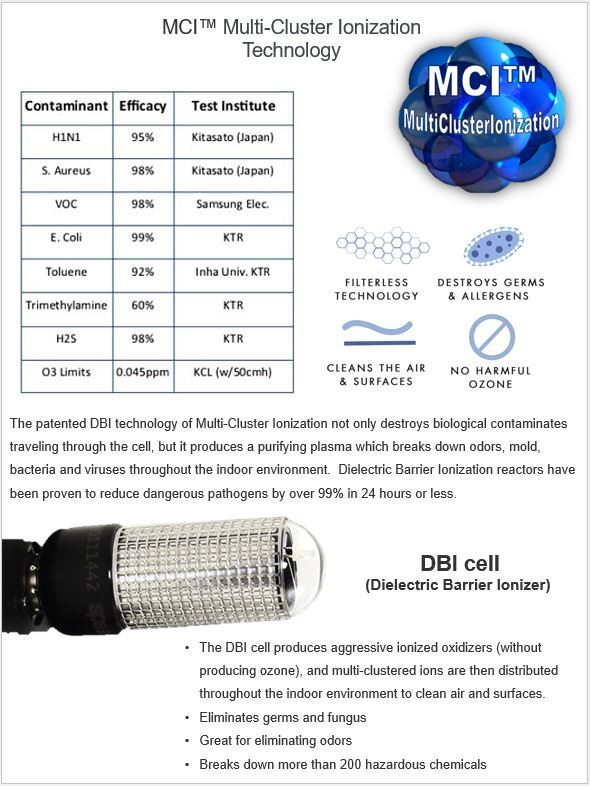

The 3" MCI DBI cell (Dielectric Barrier Ionizer) is the powerhouse behind the active purification in our MCI™ systems.

When added to an MCI air purification unit, it produces aggressive ionized oxidizers (without producing ozone) and multi-clustered ions that are then distributed throughout the indoor environment to clean air and surfaces, reducing odors, germs, allergens, mold, and breaking down more than 200 hazardous chemical pollutants.

• Actively reduce germs, viruses, and bacteria in the air and on surfaces
• Break down odors from pets, cooking, smoke, and everyday life
• Reduce mold spores and allergens for easier breathing
• Decompose harmful chemicals (VOCs) that contribute to poor indoor air quality
• Support fresher food storage by slowing mold and ethylene buildup

➡️ How it Works   Power of DBI

The DBI cell mimics the natural air‑cleaning power of a thunderstorm. Once installed in an MCI unit, it produces clusters of charged oxygen molecules — including powerful OH radicals — that your system distributes through your home to neutralize contaminants at the molecular level.

➡️ Why it’s superior to basic ionizers

DBI technology creates high‑energy multi‑cluster ions capable of breaking apart stubborn pollutants that needlepoint and brush ionizers can’t touch. It’s the difference between “freshening” the air and actually decomposing contaminants.

---

SPECS

• Life Span: 3 years
• Power consumption (W): 1.5 watts
• Input Voltage (V): DC 12 volts
• Ozone negligible (Ozone is produced during the ionizing process but not more than what is produced by ceiling fans, copiers, or other electrical equipment)

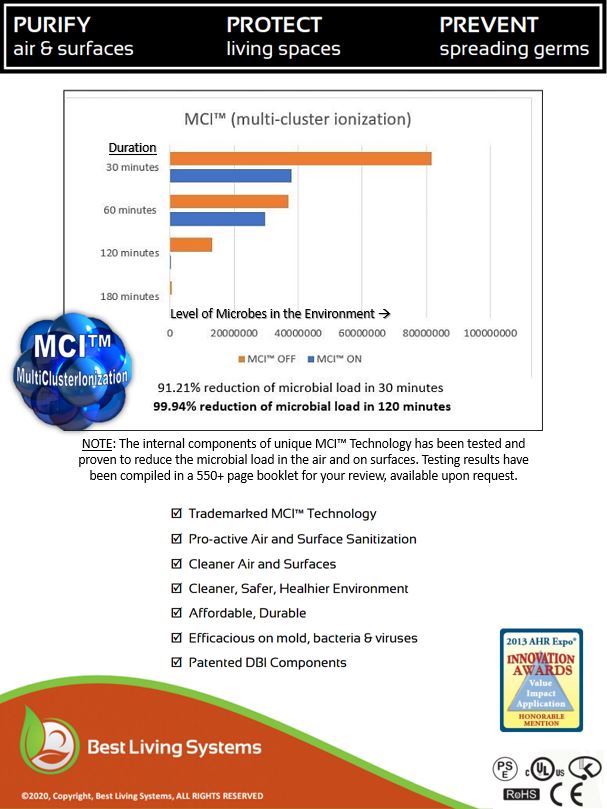

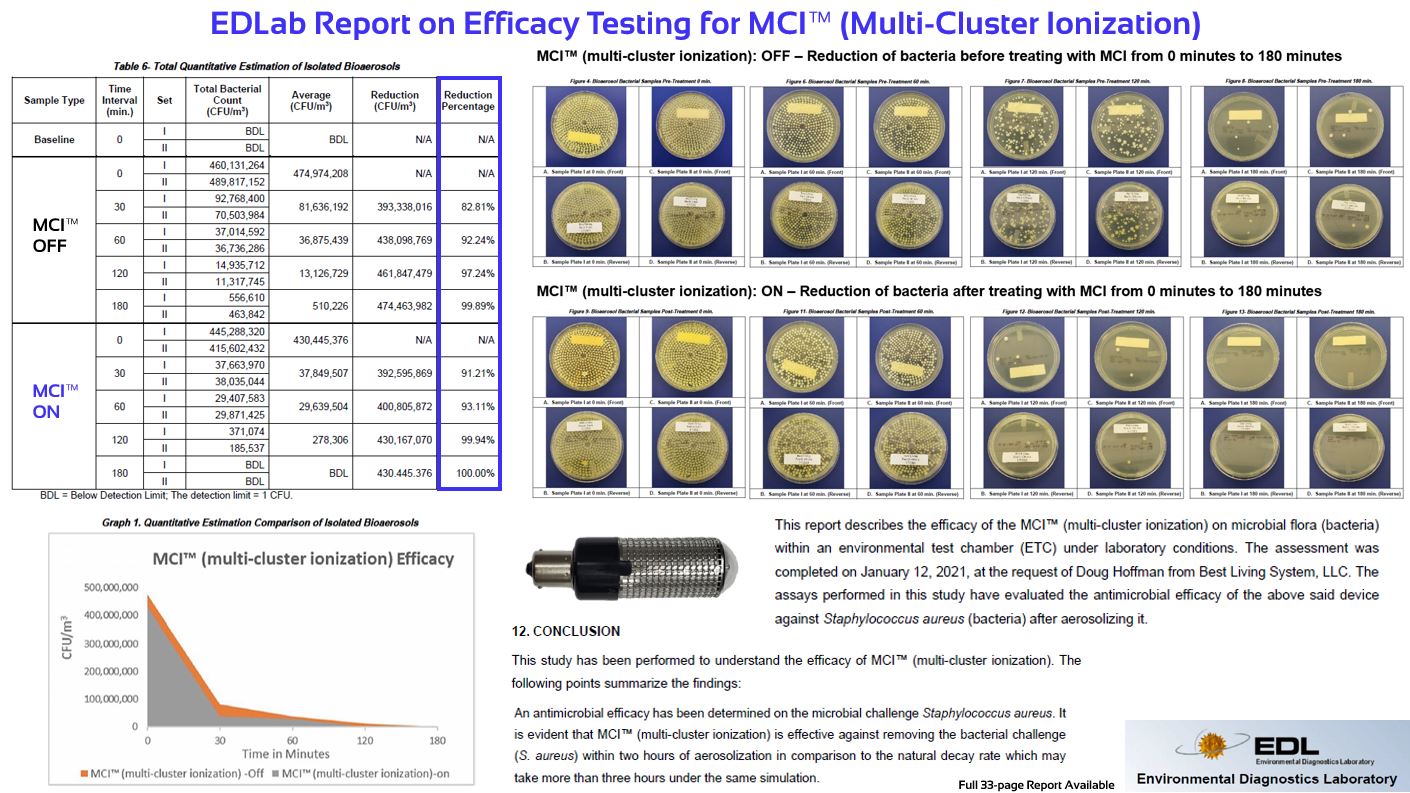

➡️ DBI Cell Resources & Testing Data

CLEANING: The DBI cell should be cleaned on a periodic basis to restore operating efficiency, at least once every six (6) months.

Please remove the DBI Cell from the air purification unit prior to cleaning following the disassembly instructions in your owner's manual (see resources page, link above).

In some harsh environments, the DBI cell may accumulate a coating that will reduce the production of cluster ions. These can be cleaned by removing the DBI cell from the unit, removing and then soaking the metal screen in an enzyme bath, wiping down the surface of the glass with an enzyme cleaner and then allowing it to dry. Once dry, reassemble and reinstall the DBI cell.

REPLACEMENT: We recommend replacing the 3" MCI DBI Cell every three (3) years, or when the LED light goes out, whichever occurs first.
